The shift from traditional compressor wiring to inverter-driven systems isn’t just a trend—it’s a fundamental reengineering of climate control. For decades, the AC compressor wiring diagram dictated every installation, from split-system units to central AC units, with a rigid architecture of relay banks, contactors, and fixed-speed motors. But the rise of inverter technology is rewriting the rules, dissolving the old wiring schema as a relic of a slower, less efficient era.
At the core, conventional AC compressors rely on fixed-speed operation governed by simple on/off relays—switching power at full capacity or nothing.
Understanding the Context
This binary logic demands a straightforward wiring layout: a compressor start relay, overload protection, and a single-phase power feed. The wiring diagram is a linear map of voltage and current paths, predictable but inflexible. Inverter systems, by contrast, modulate power output through pulse-width modulation (PWM), enabling variable speed and precise temperature control without changing voltage levels.
This isn’t just about efficiency—it’s about architecture. Inverter compressors replace bulky, rigid compressors with compact, electronically controlled units.
Image Gallery
Key Insights
The wiring transforms from a dense network of relays into a streamlined interface between the inverter board and the HVAC system. Instead of multiple stage relays, a single high-voltage DC bus supplies variable frequency to the inverter, which then generates alternating current at adjustable speeds. The result? A vastly simplified wiring diagram with fewer discrete components—less solder, fewer fuses, fewer failure points.

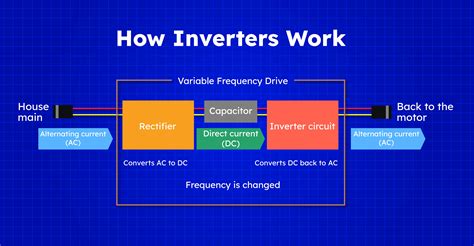

- Power Delivery Shift: Traditional systems route AC power directly to a fixed-speed compressor; inverter systems convert AC to DC and back, eliminating the need for large, heat-generating contactors. The wiring diagram shrinks as high-voltage connectors replace multi-relay clusters.
- Control Logic Complexity: Inverter systems demand intelligent control circuits—microcontrollers, sensors, and real-time feedback—shifting wiring focus from mechanical switching to data communication.
Related Articles You Might Like:
Warning Designing Effective Directed Graph Structures in Python Leetcode Must Watch! Confirmed Expert Guide To Freshman High School Age And Social Readiness Must Watch! Secret Wiring Diagram Ezgo Golf Cart Fixes Battery Acceleration Issues Don't Miss!Final Thoughts
This introduces CAN bus or 4-20mA sensor networks where once there was only power and ground.
Real-world adoption already illustrates this evolution. In 2023, a major U.S. HVAC manufacturer reported a 40% reduction in wiring complexity across new inverter-based models. What once required 18 unique relay positions now uses just six key connection points: AC input, DC bus, ground, control signal, and output. Maintenance logs confirm fewer mechanical failures—wiring wear is minimal, replaced by solid-state reliability.
But this transition isn’t without friction.
The legacy wiring diagram remains deeply entrenched in design standards and service training. Electricians must master new protocols—low-voltage DC safety, digital communication buses—while manufacturers face costs in retooling production lines. Yet the momentum is undeniable: global smart building markets are projected to grow at 11% annually, driven by energy efficiency mandates and inverter-enabled systems that demand less wiring, not more.
Consider the wiring itself: where traditional diagrams crisscross with 2–3 stage relays, inverter systems reduce this to a single high-power DC line and a low-voltage control loop. This isn’t merely fewer wires—it’s a reconfiguration of power flow.
